LC10

Liquid Level Controller

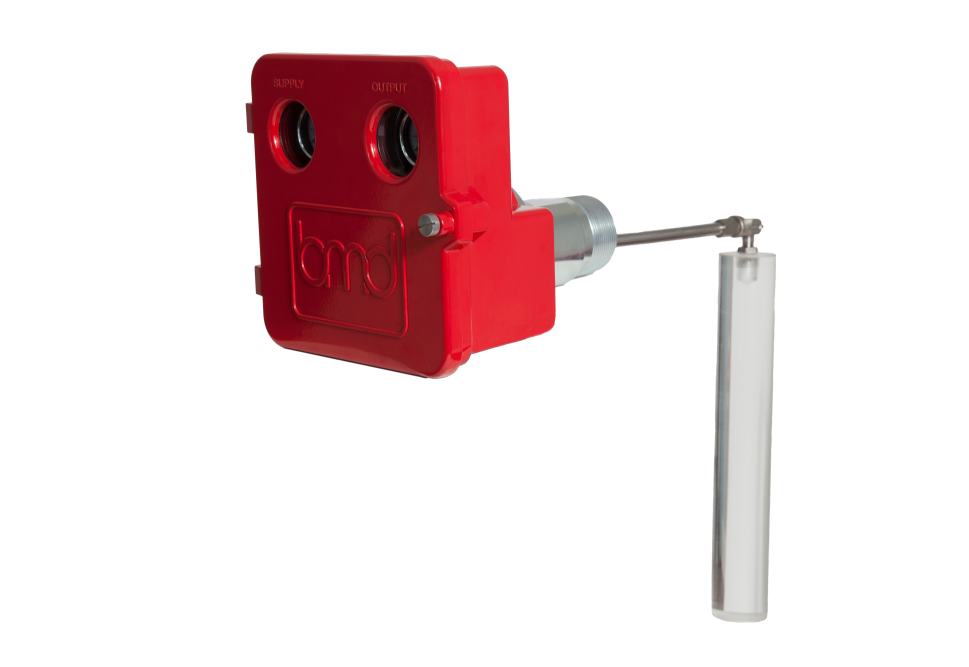

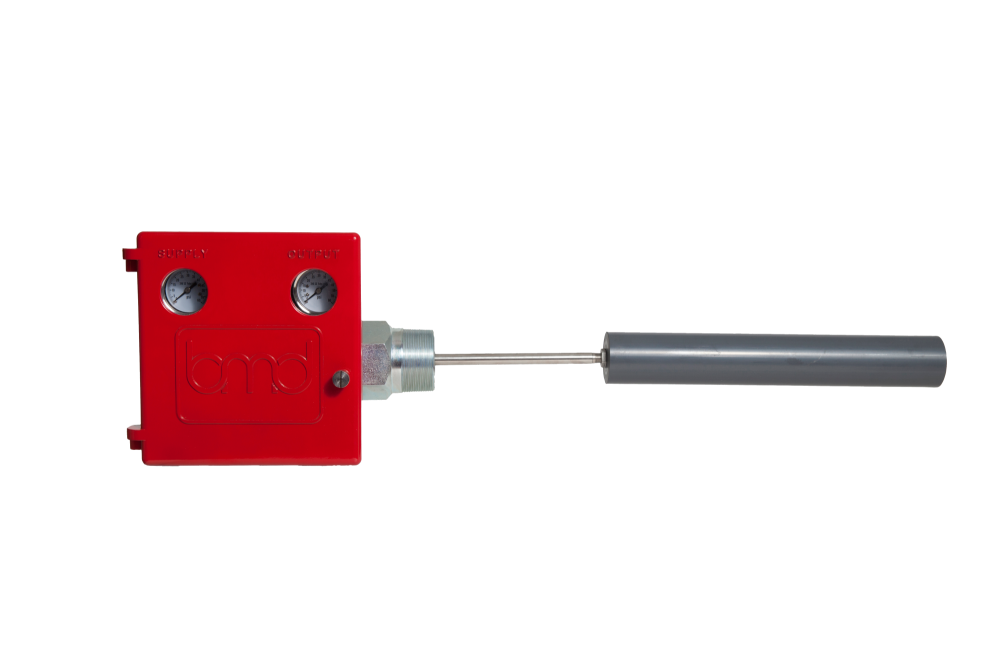

BMD’s LC10 is a reliable, rugged, field-configurable, displacer-operated, liquid level controller with unique features to fit any vessel configuration.

Power Features

  • Field configurable
  • Displacer-operated liquid level controller
  • Ideal applications include Scrubbers, Separators, and Heater Treaters
  • Force-balanced design allows for control of gas/liquid AND liquid/liquid interfaces
  • Wide variety of sizes, end connections, and displacer arm lengths to fit any vessel configuration

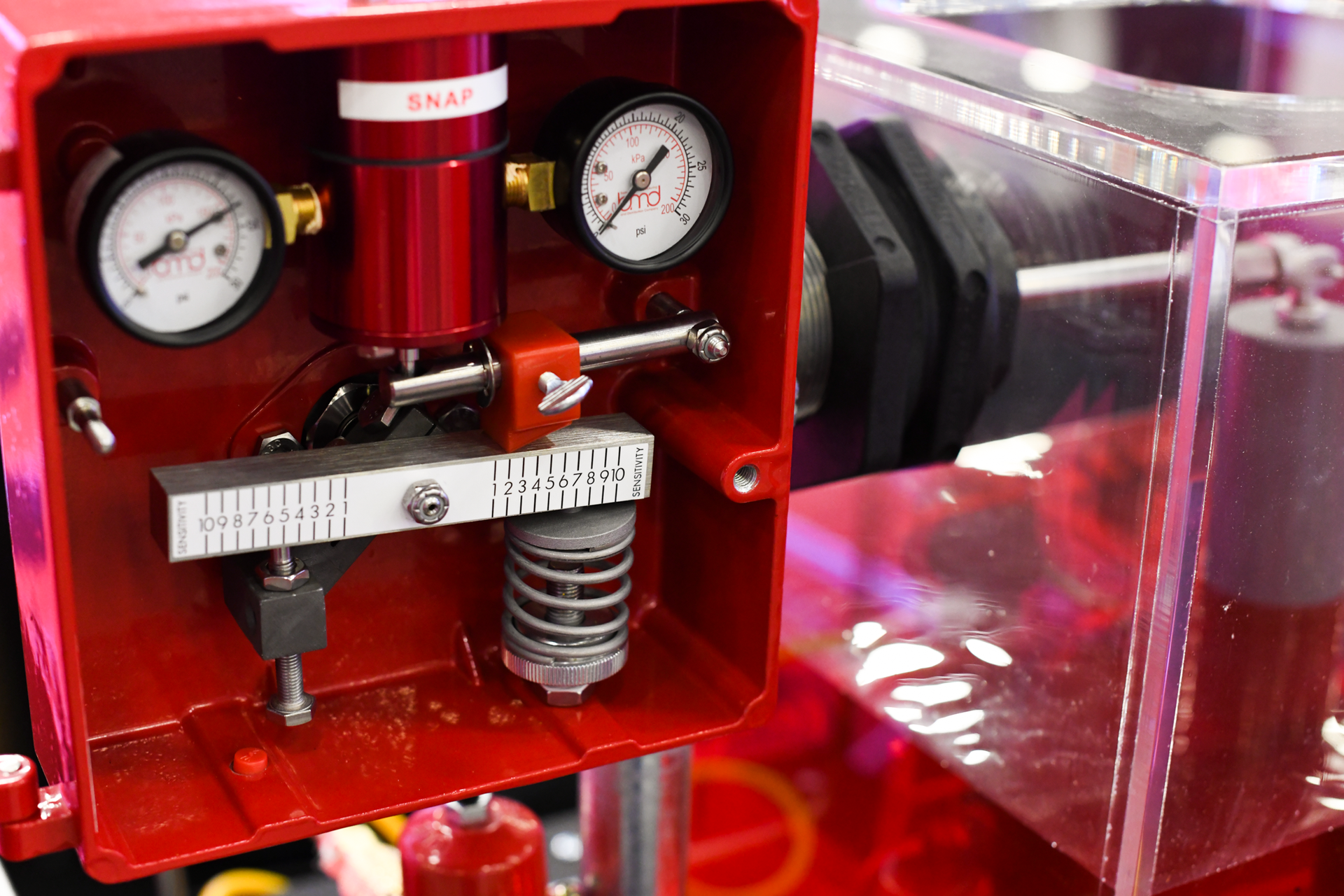

  • Snap pilot available with soft seat option that meets 40 CFR Part 60, Subpart 0000

Specifications

  • Sizes:
    • Threaded: 1 1/2” and 2”
    • Flanged: 2” to 8”
    • Union: 4” and 5”
  • Pressure Rating:
    • Threaded: 6000 psi
    • Flanged: Up to ANSI 2500 Class
    • Union: 1500 psi
  • Temperature Range:
    • -50° F to 400° F (-46° C to 204° C) (varies by material selections)
  • Pilot Connections: 1/4” NPT
  • Pilot Max Pressure: Limited by Gauges
  • Electric Switch Ratings:
    • SPDT: 15 A @ 125, 250, 480 VAC
    • DPDT: 10 A @ 125 VAC
  • Materials:
    • Body: A105, LF2 (Low Temp Option)
    • Body Trim: 303 Stainless and 316 Stainless (Optional)
    • Pilot Body: Aluminum
    • Pilot Trim: 303 Stainless
    • Case: Aluminum
    • Case Internals: 303 Stainless
    • Displacer: PVC (Standard), Acrylic, Stainless
