Control valves play a crucial role in regulating the flow of fluids in various industrial processes. These devices have a significant impact on system efficiency, safety, and overall performance across numerous sectors. From oil and gas to pharmaceuticals, control valves are essential components that help maintain precise control over fluid dynamics, pressure, and temperature.
What does a control valve do? It acts as a gatekeeper, adjusting the flow rate of liquids or gasses based on signals from a control system. This article explores the different types of control valves, their key components, and common applications. It also delves into the factors to consider when selecting the right control valve for specific industrial needs, providing valuable insights for engineers and plant managers looking to optimize their processes.
Control valves come in various types, each designed for specific applications and conditions. The most common types include globe valves, butterfly valves, and ball valves.

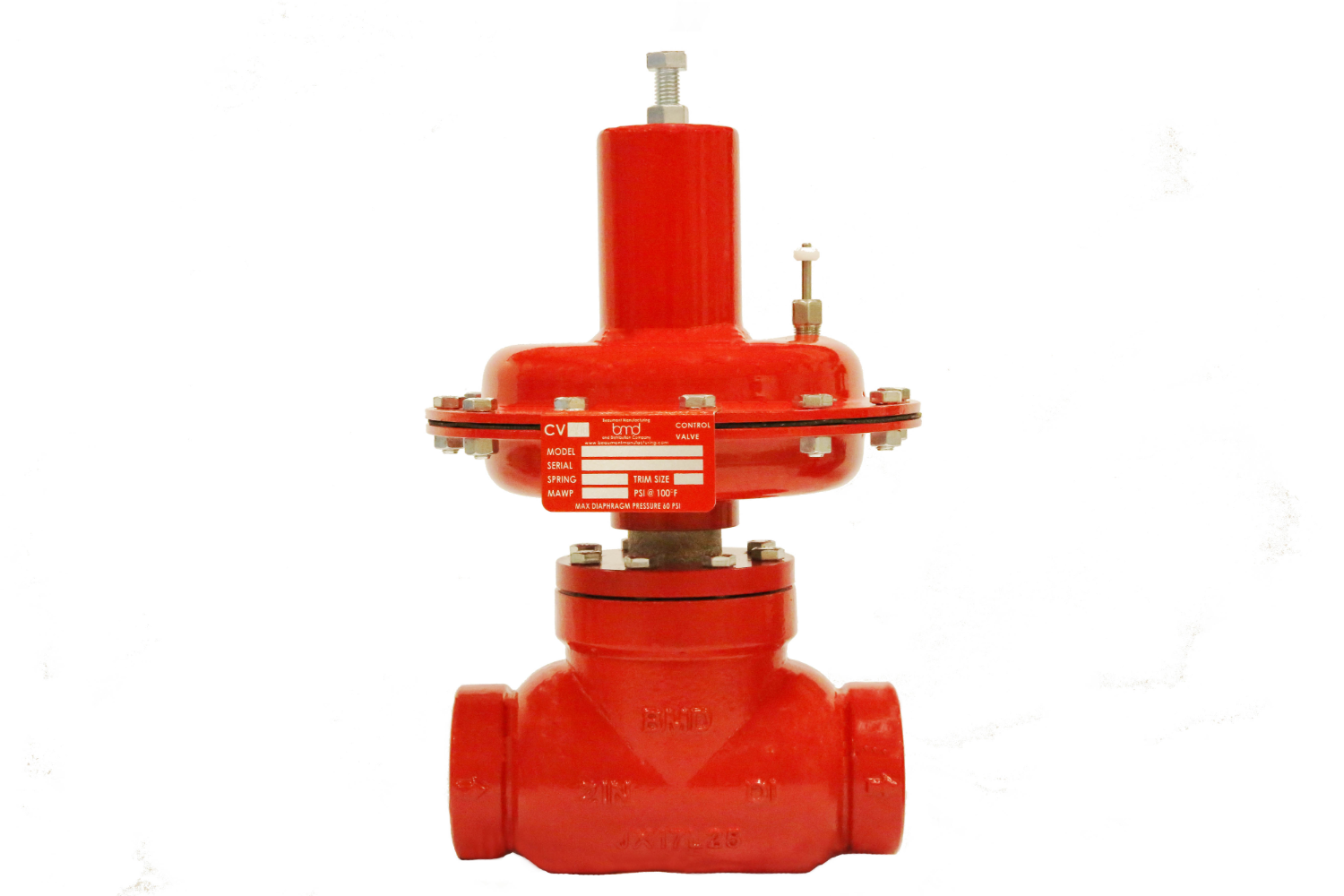

Globe valves are widely used for precise flow control and regulation. They have a spherical body with an internal baffle that divides it into two chambers. The valve’s plug moves up and down to control the flow through an opening in the baffle. Globe valves excel in applications that require accurate throttling and have the ability to handle high pressure drops.
These valves are known for their versatility and can be found in various industries, including chemical processing, power generation, and water treatment. Globe valves have a reputation for providing excellent shutoff capabilities and are often used in systems where tight closure is crucial.
One of the key advantages of globe valves is their ability to provide stable control over a wide range of flow conditions. They can handle both high and low flow rates effectively, making them suitable for various process control applications.
Butterfly valves are quarter-turn valves that use a disk to control flow. The disk rotates around a central axis, allowing or restricting flow as needed. These valves are known for their compact design, making them ideal for applications where space is limited.
Butterfly valves have a significant impact on system efficiency and are commonly used in large-diameter pipelines. They have a lower pressure drop compared to globe valves, which can be beneficial in certain applications. Butterfly valves are often chosen for their quick operation and ability to handle high flow rates.
These valves find extensive use in water distribution systems, HVAC applications, and the oil and gas industry. They are particularly effective in applications that require on-off control or moderate throttling.
Ball valves are another type of quarter-turn valve that uses a spherical disk (ball) with a bore to control flow. When the valve is open, the bore aligns with the flow path, allowing fluid to pass through. When closed, the ball rotates 90 degrees, blocking the flow.
Ball valves have a reputation for providing excellent shutoff capabilities and are often used in applications where tight sealing is essential. They have a low pressure drop when fully open, making them suitable for applications that require minimal flow restriction.
These valves are commonly used in the oil and gas industry, chemical processing, and water treatment plants. Ball valves are particularly effective in handling high-pressure and high-temperature fluids.
Control valves consist of several key components that work together to regulate the flow, pressure, and temperature of fluids in various industrial processes. Understanding these components is crucial for selecting the right control valve and ensuring optimal performance in different applications.
Actuators are the driving force behind control valves, providing the necessary power to operate the valve mechanism. They receive signals from a control system, which monitors the pressure, temperature, or level of the fluid in the system. Based on these signals, the actuator adjusts the position of the valve trim to achieve the desired flow rate.
There are several types of actuators used in control valves:
The valve trim refers to the internal components of a control valve that come into direct contact with the process fluid. These parts have a significant impact on the valve’s flow characteristics and control performance. The main components of the trim include:
The design of the trim determines the valve’s flow characteristics, which can be linear, equal percentage, or quick opening. Manufacturers offer various trim options to suit different applications and control requirements.
Control valves have a significant impact on various industries, playing a crucial role in regulating the flow of fluids and gasses. These devices are essential for maintaining system efficiency, safety, and overall performance across numerous sectors. Let’s explore some of the key applications of control valves in different industries.
In the oil and gas industry, control valves are vital components that ensure the safe and efficient transport of substances throughout the production and distribution processes. These valves have the ability to handle high pressures and provide tight shut-off capabilities, which are crucial for maintaining system integrity.
One type of control valve commonly used in oil and gas pipelines is the eccentric plug control valve. Its off-centered plug design offers excellent shut-off capabilities, preventing leakage and unintended flow. This valve’s precise flow control makes it a reliable choice for maintaining system efficiency and safety in pipeline operations.
Control valves in this industry also have a significant impact on refinery operations. When properly set up and integrated, they allow for the correct amount of different substances—in gaseous or liquid phases—to be used in various processes.
This ultimately results in favorable outputs in terms of quantity and quality in an expedient manner.
In refinery operations, control valves also play a significant role in ensuring that the right quantities of various fluids—whether gaseous or liquid—are processed under optimal conditions. Refineries often process a mix of hydrocarbons, chemicals, and other substances at varying pressures and temperatures. Control valves help maintain these conditions, allowing the refinery to efficiently produce high-quality products like gasoline, diesel, and other petrochemicals.
When properly integrated, control valves ensure that the desired output of refined products is achieved in both quantity and quality. For example:
Choosing the right control valve for an oilfield or refinery operation requires evaluating several factors:
Shop BMD’s control valves here.
Water treatment plants rely heavily on control valves to regulate various aspects of the treatment process. These valves have a significant impact on ensuring that water is properly treated and distributed efficiently.
In water treatment facilities, control valves are used to regulate the flow of chemicals, adjust water levels, and control pressure throughout the system. The eccentric plug control valve, for example, proves its worth in this application due to its tight shut-off capabilities and precise flow control. This ensures that no water is wasted or contaminated during the treatment process.
Control valves in water treatment plants are designed to handle relatively low-pressure levels and ambient temperatures. This allows for the use of rubber seals and elastomers that aren’t suitable in other applications. These materials enable water valves to seal off drips effectively, contributing to the overall efficiency of the treatment process.
Control valves have a significant impact on the efficiency and safety of power plants. They are essential for regulating various aspects of the power generation process, including steam flow, cooling water management, and fuel supply control.
Among the various types of control valves used in power plants, the butterfly valve stands out for its versatility. It has the ability to handle a wide range of flow rates and pressures, making it suitable for different stages of power generation. Whether it’s controlling steam flow in turbines or regulating cooling water systems, butterfly valves provide reliable performance and precise control.
Choosing the appropriate control valve for a specific application is crucial for maintaining system efficiency and safety. This process involves careful consideration of various factors to ensure optimal performance and longevity of the valve.
The first step in selecting the right control valve is to understand the process requirements thoroughly. This includes determining what the valve is supposed to do and the true process conditions it will encounter. Control valves can serve different purposes, such as providing shut off capabilities, or tight control, loose control). It’s essential to recognize that a valve can rarely excel at both control and tight shutoff simultaneously. If both functions are necessary, considering a separate on/off shutoff valve might be the best solution.
Understanding the true process conditions is vital for proper valve selection. This involves identifying the minimum and maximum flow rates the valve must handle, as well as the actual upstream and downstream pressures and differential pressure across the valve under various conditions. It’s important to note that the pressure drop at low flow rates is typically much higher than at full flow rates. Other crucial factors to consider include the minimum and maximum temperatures the valve might experience, including during clean-out or steam-out conditions, and the nature of the process fluid, which may vary or be a mix of products.
The inherent flow characteristic of a control valve plays a significant role in its performance. Different valve types have distinct flow characteristics, which can be categorized as quick opening, linear, or equal percentage. The goal is to achieve an overall linear response from the control system’s perspective, meaning that a change in the control signal should result in a proportional change in the process variable, regardless of the operating point.
To achieve this, it’s crucial to understand the installed flow characteristic of the valve, which can differ from its inherent characteristic due to system effects. Factors such as pressure drop ratios and rangeability requirements must be considered when selecting the appropriate valve characteristic. For instance, equal percentage trim is often used to counteract the “droop” caused by changing pressure drop when installed in a process system.
Selecting the right materials for control valve components is critical for ensuring longevity and performance in challenging process conditions. Different valve components may require varying materials based on their specific functions and exposure to process fluids.
When choosing materials, it’s essential to consider factors such as erosion resistance, corrosion resistance, and the ability to withstand high temperatures and pressures. For example, in applications with abrasive slurries, hard materials or high-strength coatings might be necessary to combat erosion. In corrosive environments, materials with passive corrosion resistance, such as stainless steel or certain alloys, may be more suitable.
It’s also important to consider the compatibility of materials when different valve components interact. For instance, to minimize adhesive wear in high-cycle valves, pairing a hard material with a relatively soft material can be more effective than using two soft materials together.
Shop BMD’s control valves here.
Control valves have a crucial role in regulating fluid flow across various industries. Their impact on system efficiency, safety, and overall performance is significant. From oil and gas to water treatment and power generation, these devices are essential to maintain precise control over fluid dynamics, pressure, and temperature. The diverse types of control valves, including globe, butterfly, and ball valves, each have unique characteristics that make them suitable for specific applications.
To choose the right control valve, it’s key to consider process requirements, valve characteristics, and material considerations. Understanding these factors helps engineers and plant managers to optimize their processes and ensure long-term reliability. As technology advances, control valves will continue to evolve, offering even more precise control and improved efficiency in industrial processes. This ongoing development promises to further enhance productivity and safety across numerous sectors.
FAQs
What are common issues with control valves?
One frequent issue with control valves is internal leakage. Though some leakage is allowable due to the design gaps in valves, it must remain within manufacturer-specified limits to avoid operational problems.
What is a general guideline for sizing control valves?
A good rule of thumb for control valve sizing is to choose a valve that operates at 60% to 80% openness during maximum flow requirements, and not less than 20% openness during the lowest flow requirements. This range typically ensures optimal control.
What are the fundamental principles of control valves?
Control valves are essential for managing flow rates within a system. Key characteristics include the ability to throttle flow, minimal resistance or turbulence when fully open, and a mechanism for quick opening and closing to respond swiftly in emergencies or for safety reasons.
